IOT.JS

Johnny Five + socket.io

por Iddar Olivares / @iddar

Descarga el codigo de la practia desde aquí

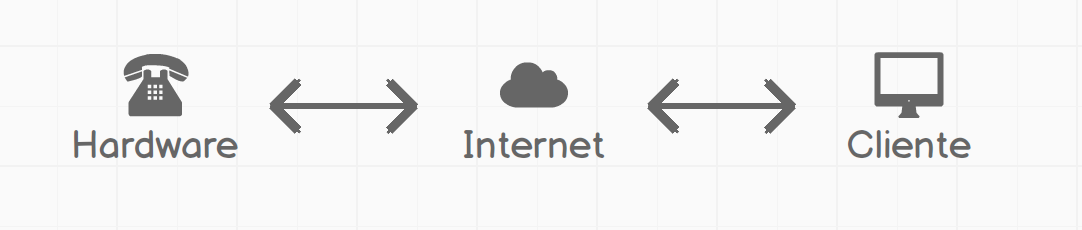

Internet de la cosas

Temario

• El hardware
• El server
• La web

El hardware

Anatomia: Johnny Five

• Board
• Eventos
• Devices & Drives

Creando el board

        'use strict'
        const Five = require('johnny-five')
        const board = new Five.Board({repl: false})

        board.on('ready', () => {
          .......
          .......
          .......
        })


Board + Devices & Drives

        'use strict'
        const Five = require('johnny-five')
        const board = new Five.Board({repl: false})

        board.on('ready', () => {
          let devices = {}
          devices.lcd = new Five.LCD({
            controller: 'JHD1313M1'
          })
          callback(null, devices)
        })


Board + Devices & Drives + Commonjs

        'use strict'
        const Five = require('johnny-five')
        const board = new Five.Board({repl: false})

        function setup (callback) {
          board.on('ready', () => {
            let devices = {}
            devices.lcd = new Five.LCD({
              controller: 'JHD1313M1'
            })
            callback(null, devices)
          })
        }

        module.exports = setup


El server

Modulos del server

• HTTP Server
• Websocket Server
• Eventos

HTTP Server

        'use strict'
        const express = require('express')
        const app = express()
        const http = require('http').Server(app)
        const path = require('path')
        function server (config) {
          const PORT = process.env.PORT || config.PORT
          const pub = path.resolve(__dirname, '..', 'public')
          app.use(express.static(pub))
          http.listen(PORT, () => {
            console.log('http://localhost:' + PORT)
          })
          return http
        }
        module.exports = server


Websocket Server

        'use strict'
        const SocketIo = require('socket.io')

        function socketServer (server, callback) {
          const io = SocketIo(server)
          io.on('connection', (socket) => {
            console.log('Socket.io Ok')
            callback(socket)
          })
        }

        module.exports = socketServer


Eventos

        'use strict'
        const onStartSocket = (devices, socket) => {
          socket.on('text', (message) => {
            devices.lcd.clear().print(message)
          })

          socket.on('color', (rgbColor) => {
            devices.lcd.bgColor(rgbColor.r, rgbColor.g, rgbColor.b)
          })
        }

        module.exports = onStartSocket


La web

Modulos de la web

• HTML
• CSS
• JS

HTML

CSS

        body {
          display: flex;
          align-items: center;
          flex-direction: column;
          background: #bababa;
        }
        .form {
          flex: 1;
          display: flex;
          align-items: center;
          height: 100vh;
        }
        ......


JS

        'use strict'

        const socket = io.connect(window.location.origin)
        const inputs = document.getElementsByTagName('input')
        const text = inputs[0]
        const color = inputs[1]


JS

        const debounceInput = _.debounce((event) => {
          const value = event.target.value
          socket.emit('text', _.deburr(value))
          console.log(value)
        }, 150)
        const debounceColor = _.debounce((event) => {
          const value = event.target.value
          socket.emit('color', hexToRgb(value))
          console.log(hexToRgb(value))
        }, 25)

        text.focus()
        text.addEventListener('input', debounceInput)
        color.addEventListener('input', debounceColor)


El resultado

Gracias

http://github.com/iddar/slides

Iddar Olivares / @iddar
